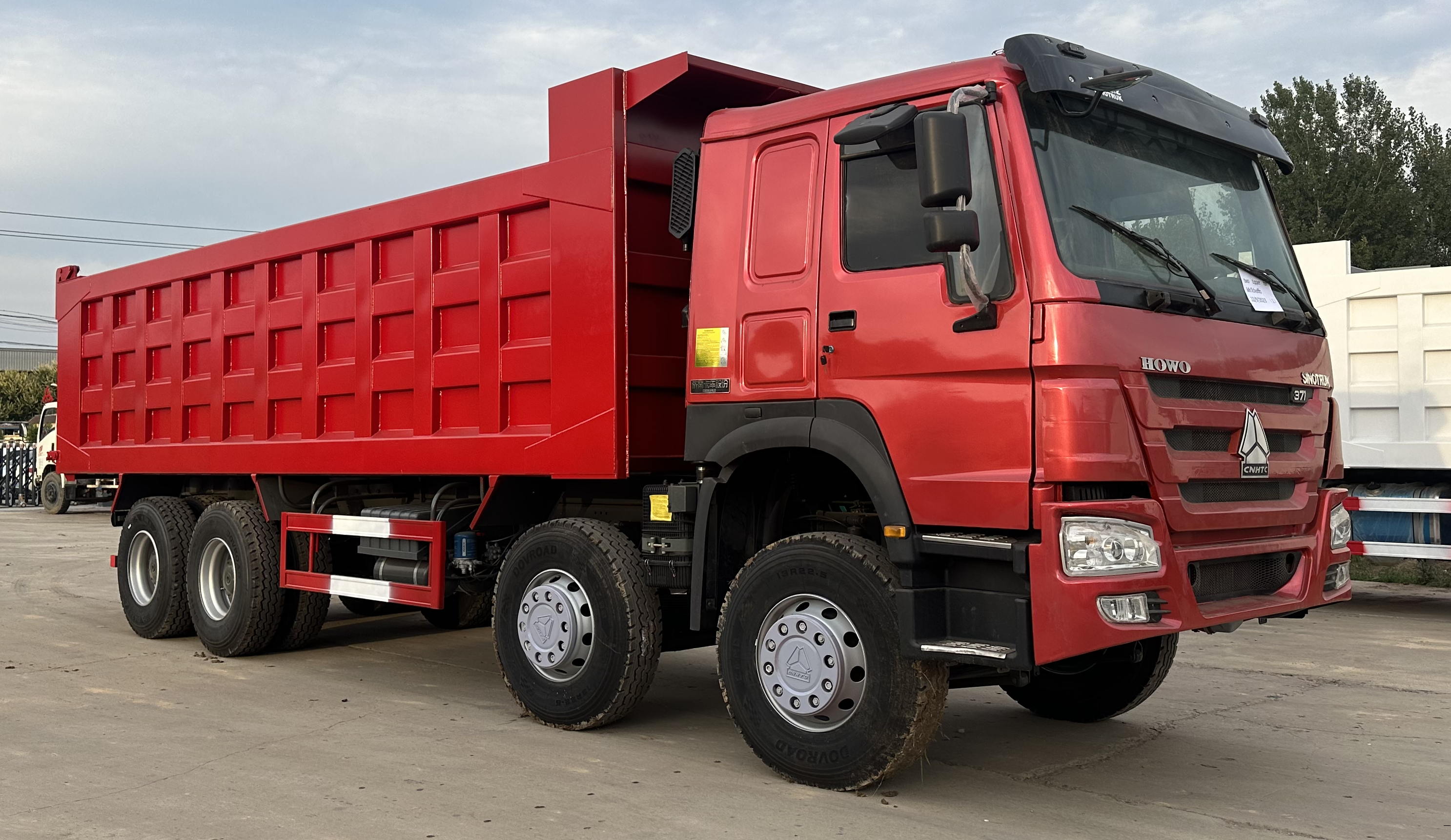

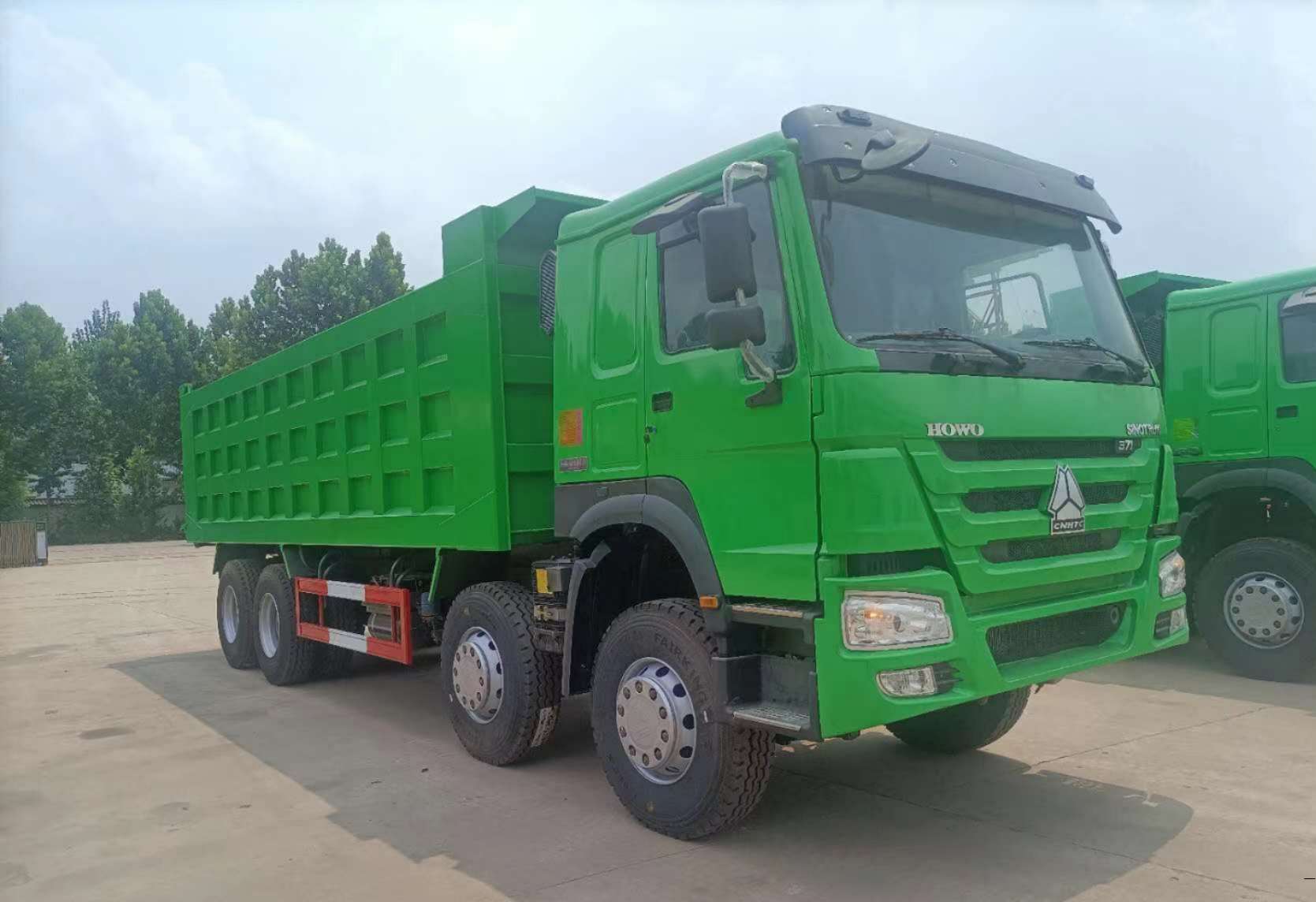

12 tyres HOWO 8X4 400HP 40-50 Tons Dumper/Dump/Tipper
Model: NO. ZZ3317V3567B1L
Drive Wheel: 8×4
Engine Standard:＞8L
Horsepower: 300/400hp
Tire Certification: ECE, GCC, ISO, DOT
Dumping Type: Front lifting, hydraulic system
Condition: Used
Cabin: HW76 with single bunk with air conditioner
Drive Seat: Air Suspension Seat
Front Axle:VGD95*2
Fuel Aank:300/400L
Tandem:2*HC16 double reduction driving axle
Tyre: 315/80R22.5/12.00R20 radial tyre 12+1 spare tyre
Bucket size:7300mm*2300mm*1500mm
Color: Red, White, Black, Yellow, green.
Transport Package: Nude Packing
Specification: Heavy Duty Truck
Trademark: SINOTURK HOWO
Drive Wheel: 8×4
Engine Standard:＞8L
Horsepower: 300/400hp
Tire Certification: ECE, GCC, ISO, DOT
Dumping Type: Front lifting, hydraulic system
Condition: Used
Cabin: HW76 with single bunk with air conditioner
Drive Seat: Air Suspension Seat
Front Axle:VGD95*2
Fuel Aank:300/400L
Tandem:2*HC16 double reduction driving axle
Tyre: 315/80R22.5/12.00R20 radial tyre 12+1 spare tyre
Bucket size:7300mm*2300mm*1500mm
Color: Red, White, Black, Yellow, green.
Transport Package: Nude Packing
Specification: Heavy Duty Truck
Trademark: SINOTURK HOWO
Detail
1. Technical Parameters
| Cabin | Driving type 8X4 LHD/RHD |
| Long cab, one bunk, safety belts, MP5, airconditioner, Central door lock, Electric window lifter, Electric mirrors(with heating) | |
| Bucket Size | 7300mm*2300mm*1500mm |
| Gear Box | HW19710+HW50/10speed,2reverse |
| Engine | Brand: SINOTRUK |
| Model: WP12.400E201 | |
| Horse Power(HP):400HP | |
| Emission standard: Euro II | |
| Max Speed | 90 km/h |
| Tire | 315/80R22.5/12.00R20radial tyre 12+1 spare tyre |
| Carriage | The carriage can be heightening; Steel thickness of Carriage floor optional 8, 10, 12, 14, 16mm; Steel thickness of Carriage side optional 4, 6, 8, 10, 12, 14mm; Ordinary steel, optional Manganese plate-Mn16, high strength steel |

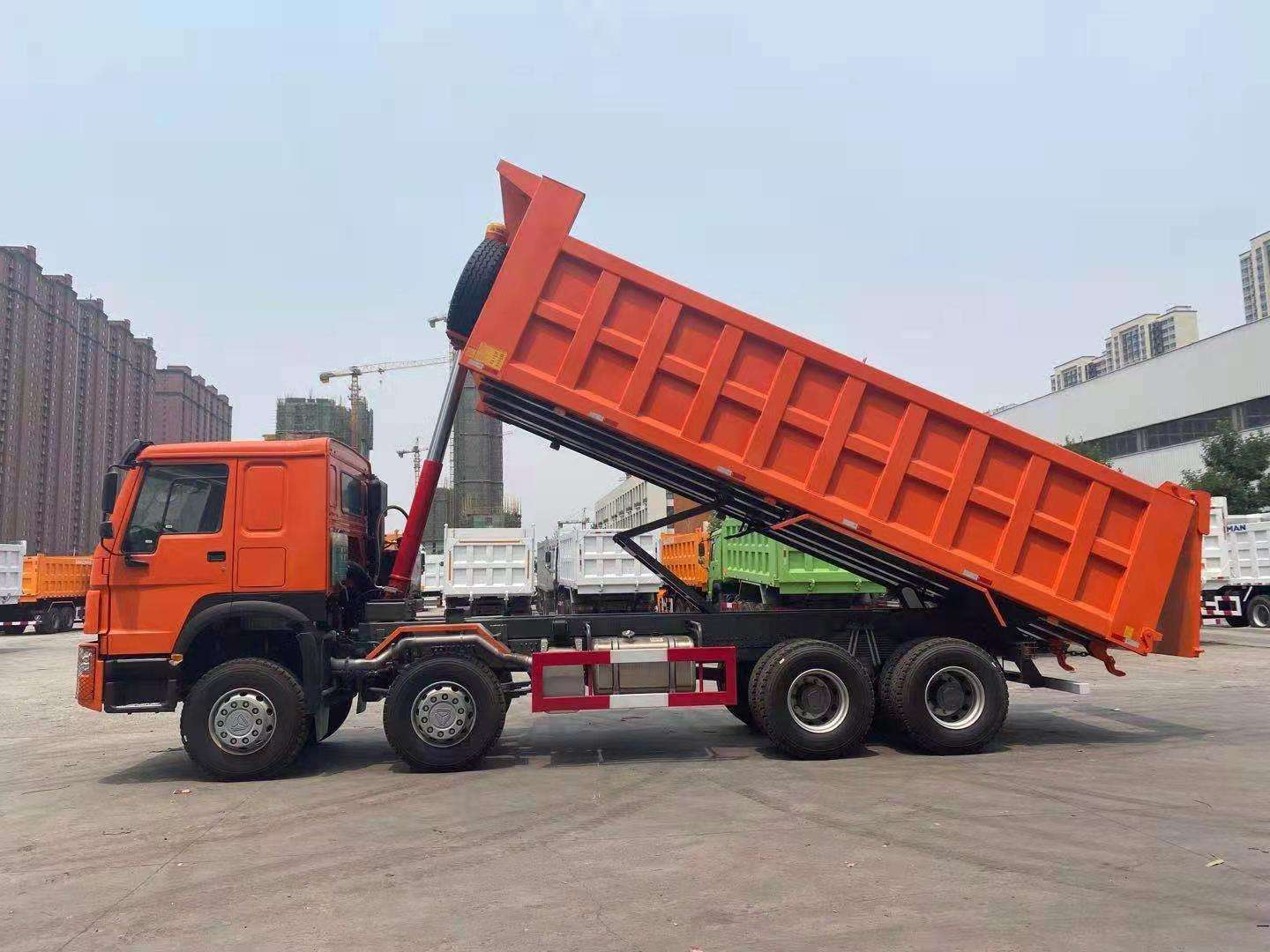

| Carriage lifting mode | Frontlifting, hydraulic system |
| Transmission | HW15710 or HW19710 transmission, 10 forward and2 reverse |
| Oil Tank | 300/400L |
| Brake System | Service brake: Dual circuit compressed air brake |
| Parking brake (emergency brake): Spring energy,compressed air operating on rear wheels | |
| Auxiliary brake: Engine exhaust valve brake | |
| Electrics | Operating voltage: 24V, negative grounded, Batteries: 2X12 V, 165 Ah |
| Horn, headlamps, fog lights, brake lights,indicators and reverse light | |
| Option | ABS; Automatic Break Clearance Adjusting Arm;Traveling Data Recorder; Metal Pipeline; Engine Protective Board; Guard grating for engine oil bottom case; All-metalfront protection frame |
