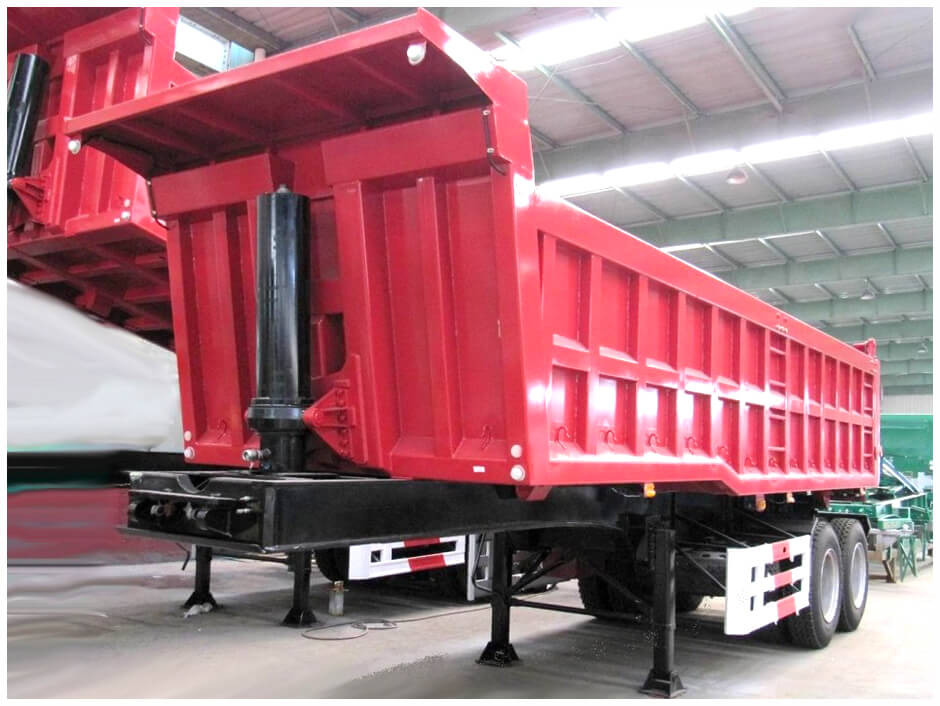

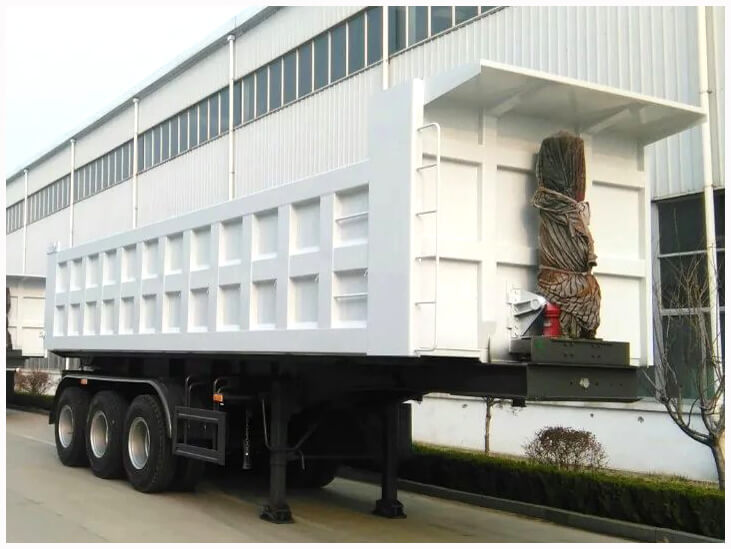

3 Axle 30m3 50t Tractor Tipper Dumper Tipping Transport Dump Trailer U Shape Dump Semi Trailers
Model NO.:DUMP Semi-Trailer
Shape:Van-type
Axle Number:2/3/4
Tire Number:8/12/16
Self-dumping:Self-dumping
Material:Steel
Condition:New
Transport Package:Nude /RO- RO
Specification:9200*2550*3600
Features:
1. Plenty types for your choice: skeleton type / flatbed type / U type.
2.Axle 2 / 3 / 4 / 6 available for different road condition.
3.Straight beam or goosneck type optional.
4.Container twist lock available.
5.Rear dump, Fast unloading, clean unloading.
6.Different length optional. High fence up to 2000mm.
7. Multi ways of door opening.
Shape:Van-type
Axle Number:2/3/4
Tire Number:8/12/16
Self-dumping:Self-dumping
Material:Steel
Condition:New
Transport Package:Nude /RO- RO
Specification:9200*2550*3600
Features:
1. Plenty types for your choice: skeleton type / flatbed type / U type.
2.Axle 2 / 3 / 4 / 6 available for different road condition.
3.Straight beam or goosneck type optional.
4.Container twist lock available.
5.Rear dump, Fast unloading, clean unloading.
6.Different length optional. High fence up to 2000mm.
7. Multi ways of door opening.
Detail
| Dump style | dump truck trailer |
| Loading Capacity | 30-45CBM |
| Axle | 2 axle 3axle 13T/16T |
| Dimension | Length 11000mm*Width 2500mm *Height 2800mm |
| Cylinder | HYVA |
| Floor plate thickness | 5mm |
| sidewall thickness | 4mm |
| Main beam material | Q345ZT700 |
| Main beam height | 500mm |
| Main beam upper plate | 8mm |
| Main beam lower plate | 16mm |
| Tyre | 11.00R20 Chengshan Linglong orTrangle |
| Wheel Rim | 8.0/9.0*8/12/16 pieces steel/Aluminum |
| Suspension | Mechanical suspension or air suspension |
| Leaf spring | 90mm*13/16mm *10 pieces |
| Kingpin | 2" (50)# or 3" (90#) |
| Tool box | 1 tool box |
| color | white/ red / grey/ dark green and can be customized |
